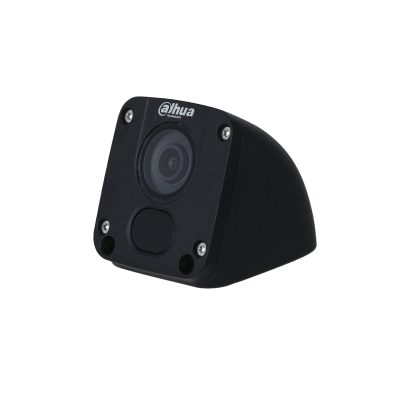

מצלמת HDCVI אופקית לרכב HAC-HMW3200D-H

Camera

Image Sensor

1/2.7 inch CMOS

Max. Resolution

1920 (H) x 1080 (V)

Pixel

2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

S/N Ratio

>65 dB

Min. Illumination

0.02 Lux/F2.0, 30IRE, 0 Lux IR on

Illumination Distance

20 m (65.6 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

1 (IR)

Pan/Tilt/Rotation Range

Tilt: 0°–180°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm

Max. Aperture

F2.0

Field of View

H: 106°; V: 55°; D: 126°

Iris Type

Fixed iris

Close Focus Distance

0.5 m (1.64 ft)

DORI Distance

Detect

Observe

Recognize

Identify

2.8 mm

38.6 m (126.6 ft)

15.4 m

(50.5 ft)

7.7 m

(25.3 ft)

3.9 m

(12.8 ft)

Video

Frame Rate

CVI: 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps;
AHD: 1080p@25/30fps; 720p@25/30fps;
TVI: 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps;
CVBS: 960H

Resolution

1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × 576/960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart IR

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE/FCC

Port

Video Output

1-channel CVI/CVBS/AHD/TVI switchable video output (Aviation connector)

Aviation Connector Interface

1-power

2-video ground

3-power ground

4-video

Power

Power Supply

12V ±30% DC

Power Consumption

Max 3.1W (12V DC, IR on)

Environment

Operating Temperature

–40°C to +60°C (–40°F to 140°F); <95% (non-condensation)

Storage Temperature

–40°C to +60°C (–40°F to 140°F); <95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal

Dimensions

80.5 mm × 64.9 mm × 59.9 mm (3.17″ × 2.56″ × 2.36″)

Net Weight

0.26 kg (0.57 lb)

Gross Weight

0.35 kg (0.77 lb)
