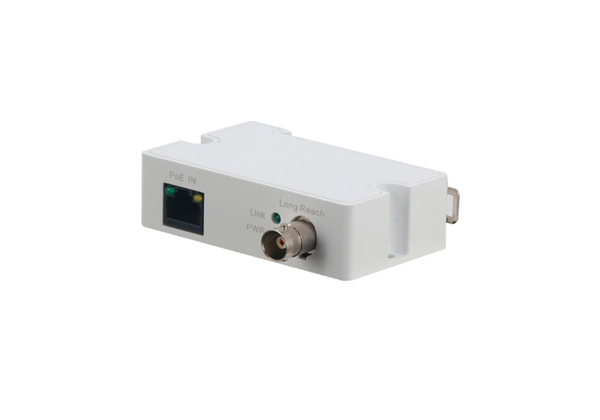

ממיר/משדר LR1002-1ET BNC-RJ45

Hardware

Model

LR1002-1ET

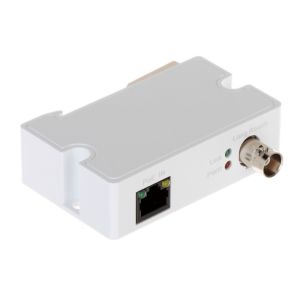

LR1002-1EC

Function Port

1*10/100 Mbps Base-TX

1*BNC

Power Consumption

<2W

Transmission Bandwidth

RG59 coaxial cable:

400m/100Mbps, 1000m/10Mbps

PoE Protocol

48V Passive PoE (Pairs 1, 2+; 3, 6 Return)

Network Standard

IEEE802.3, IEEE802.3u, IEEE802.3x

Lightning Protection

Common Mode 4KV

Differential Mode 2KV

Operating Temperature

–30°C to 65°C (–22°F to 149 °F )

Operating Humidity

5%–95%

Weight

61 g (0.13 lb)

Dimension (W×D×H)

79 mm × 52 mm × 23 mm (3.11” × 2.05” × 0.91”)

Take RG59 as an example (Max. DC resistance < 5.0Ω/100m)

LR1002-1ET/LR1002-1EC

Supports with 48V

Supports with 53V

100m

Bandwidth (Mbps)

100

100

Load Capacity (W)

21

25.5

200m

Bandwidth (Mbps)

100

100

Load Capacity (W)

15

24

300m

Bandwidth (Mbps)

100

100

Load Capacity (W)

11

19

400m

Bandwidth (Mbps)

100

100

Load Capacity (W)

9

16

500m

Bandwidth (Mbps)

10

10

Load Capacity (W)

7

13

800m

Bandwidth (Mbps)

10

10

Load Capacity (W)

5

8

1000m

Bandwidth (Mbps)

10

10

Load Capacity (W)

4

6
